Project Description

Osteotomy depths are designed to be up to 1.5 mm longer than the corresponding implant insertion depth. We call this difference the “v-factor”. Not only does it vary by manufacturer, but it can also vary within any one manufacturer’s drill kits – tapered or straight, guided or non-guided, hub or no hub – all drill kits are built differently. Below is a table of V-factors taken from various manufacturer surgical manuals.

When drilling freehand, one must be aware that the depth marks correspond to implant insertion depth, even though in many cases the osteotomy depth will be deeper. When using a surgical guide, it is important to note that the virtual implant placed in the planning software may be short of the full osteotomy depth. And the manufacturer of the drill guide must account for the additional depth of the drill. If this is not accounted for, the drill will go only to the implant insertion depth, stopping short of the desired osteotomy depth.

­

Table 1: V-factors (drilling depth minus implant insertion depth)

Make/Model V-Factor Length (mm)
NobelReplace 1.50
Keystone Straight 1.35
Keystone Tapered 1.27
3i ACT 0.60 – 1.30
3i ITD/DTN/DT 0.40 – 1.00
Zimmer 1.00
Osstem Taper and Straight 1.00
AlphaBio TEC 0.00 – 1.00
MIS SEVEN 0.20 – 0.95
MIS BiOCOM 0.20 – 0.60
Hiossen HM 0.60
Straumann 0.40
BioHorizons Tapered Internal 0.00
Implantium 0.00
DENTSPLY XiVE 0.00
DENTSPLY Ankylos 0.00


Exhibit A

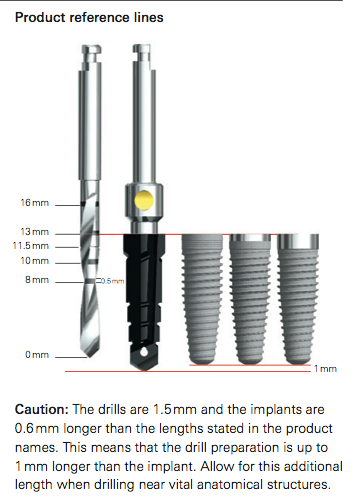

Figure 1 – NobelReplace

Nobel

Figure 2 – Keystone Straight

Keystone PrimaConnex Straight

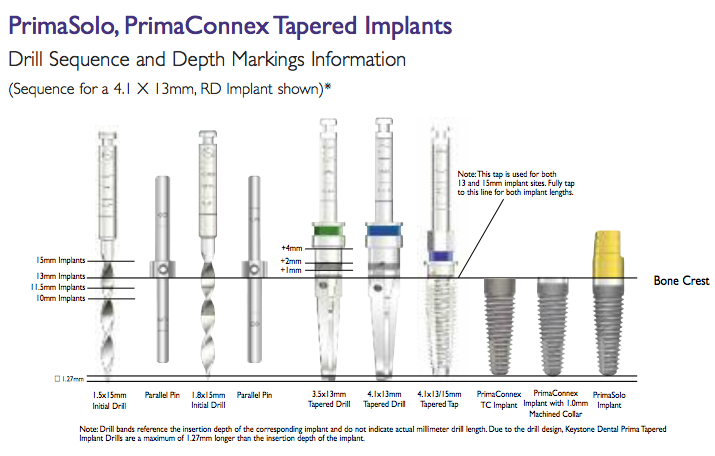

Figure 3 – Keystone Tapered

Keystone Prima Solo, Prima Connex Tapered

Figure 4 – 3i (all)

3i V-F diagram

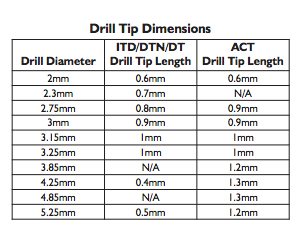

Figure 5 – 3i (all)

3i V-Fs

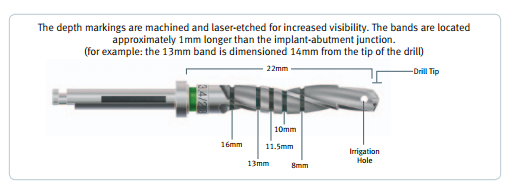

Figure 6 – Zimmer drills (Driva shown below)

Zimmer Driva Guided Surgery Kit

Figure 7 – Osstem Tapered

Osstem 5.0 Taper

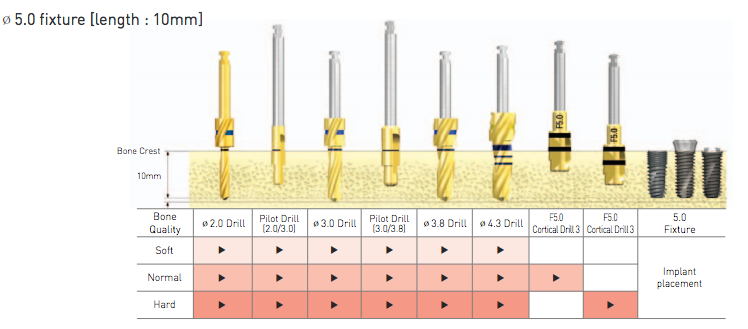

Figure 8 – Osstem Straight

Osstem 5.0 Twist

Figure 9 – AlphaBio TEC

AlphaBio TEC

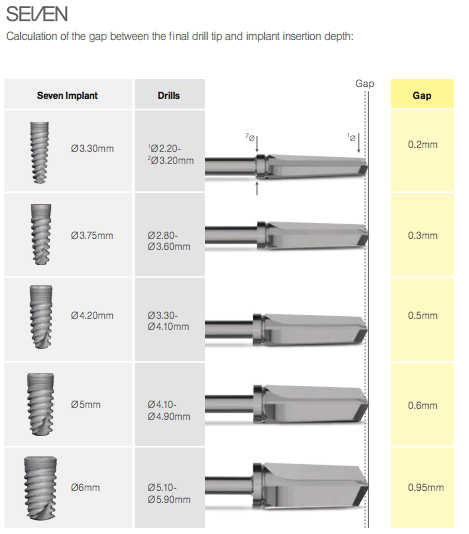

Figure 10 – MIS SEVEN

MIS SEVEN

Figure 11 – MIS BiOCOM

MIS BiOCOM

Figure 12 – Hiossen HM

Hiossen HM

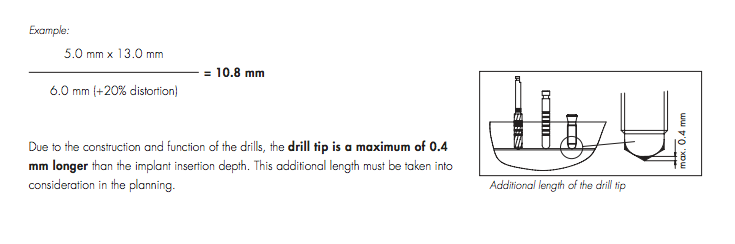

Figure 13 – Straumann

Straumann

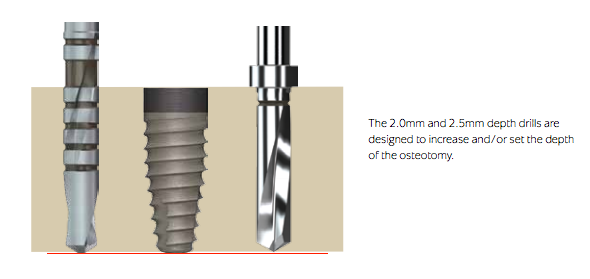

Figure 14 – BioHorizons Tapered Internal

BioHorizons-Tapered-Internal

Figure 15 – Implantium

Implantium 5.0 - same for all diameters

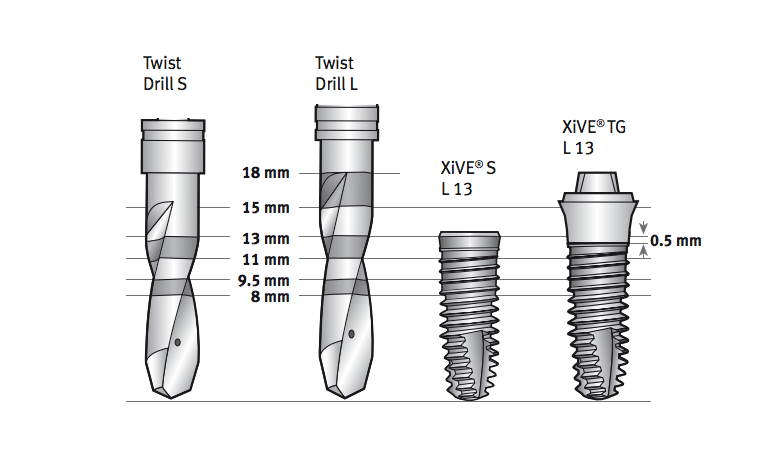

Figure 16 – Dentsply XiVE

Denstply XiVE

Figure 17 – Dentsply ANKYLOS

Dentsply Ankylos
